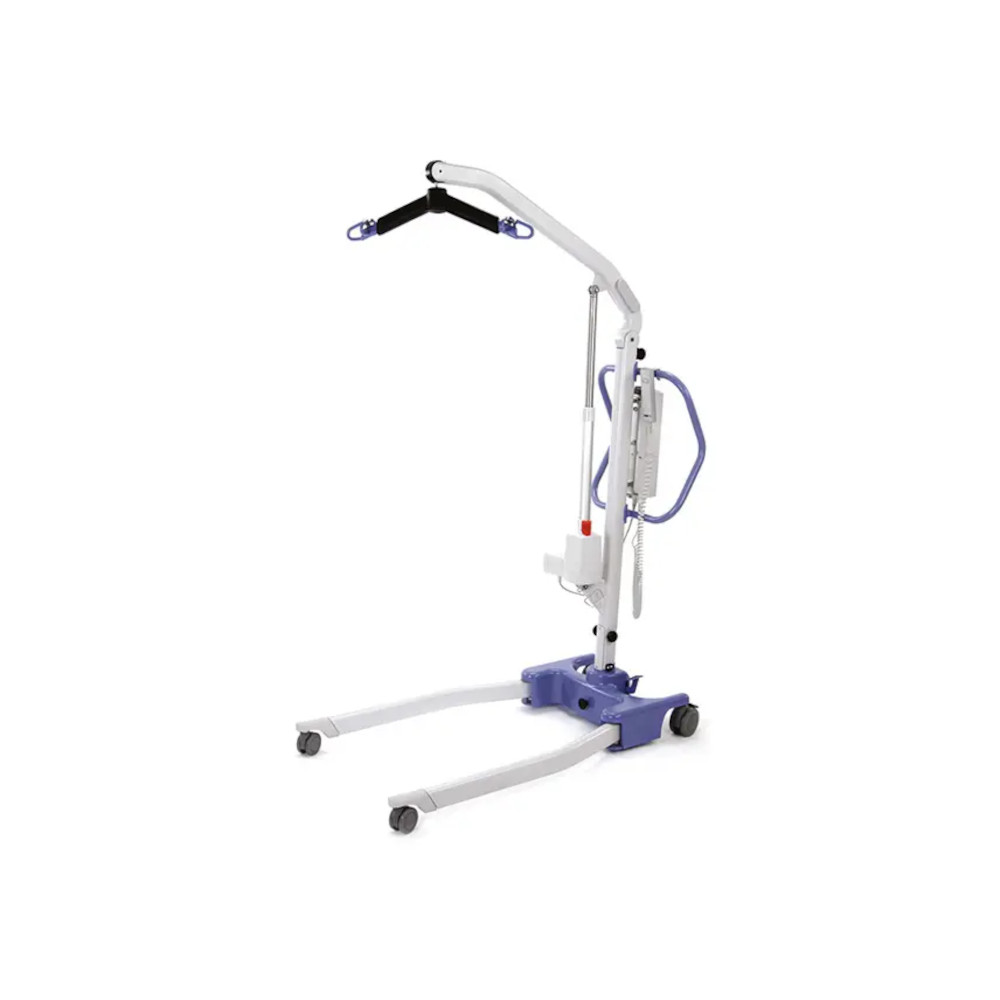

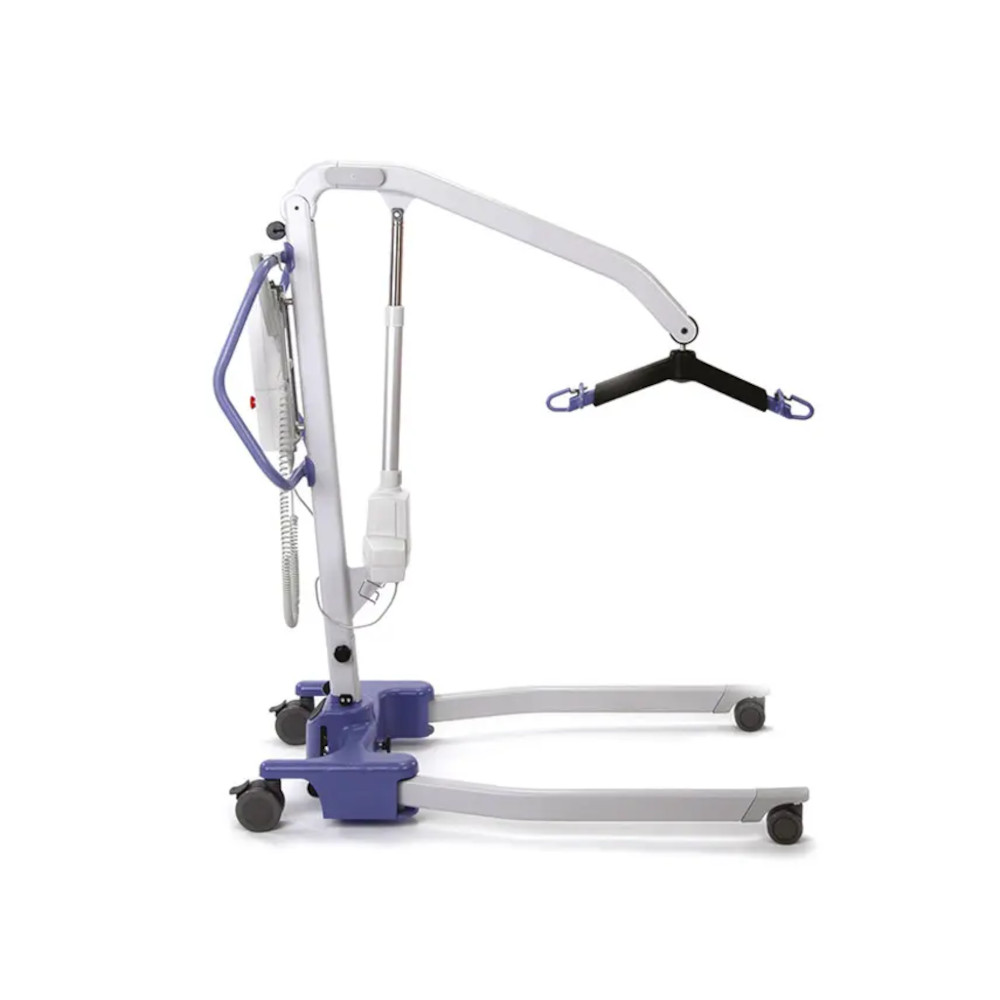

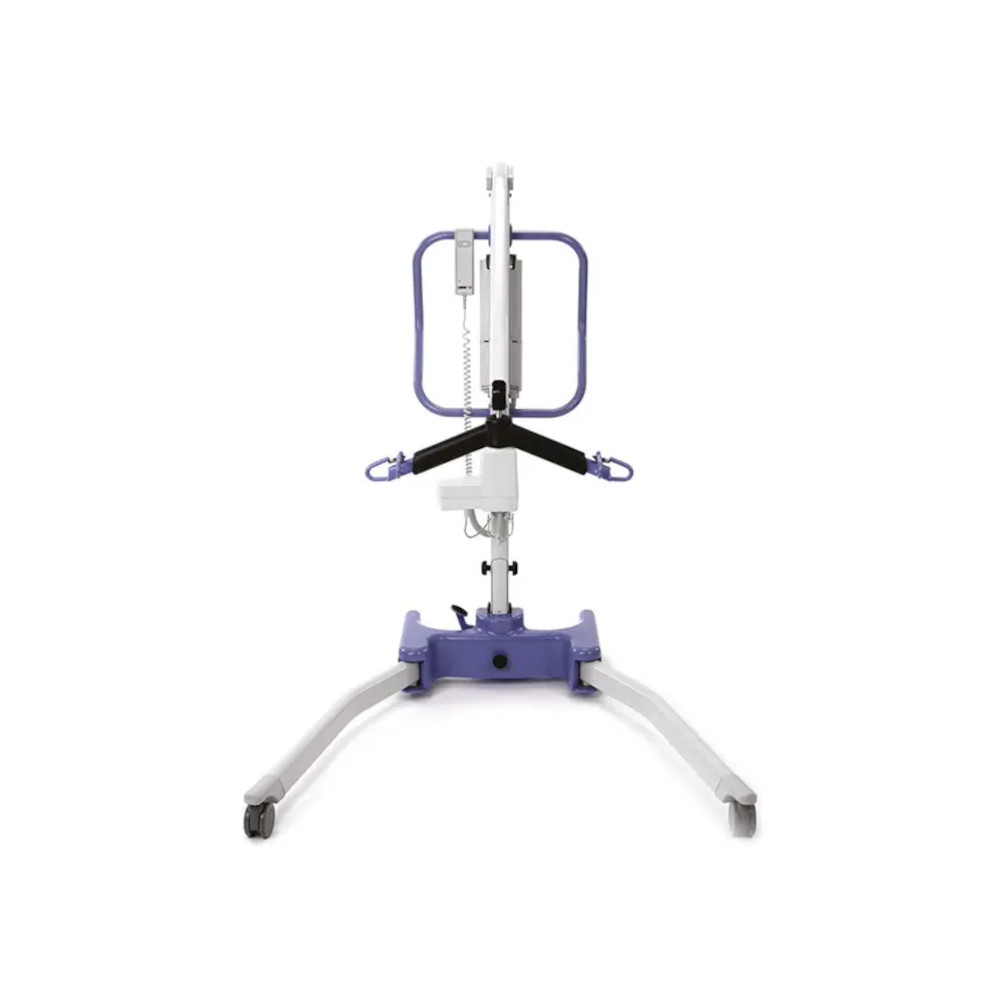

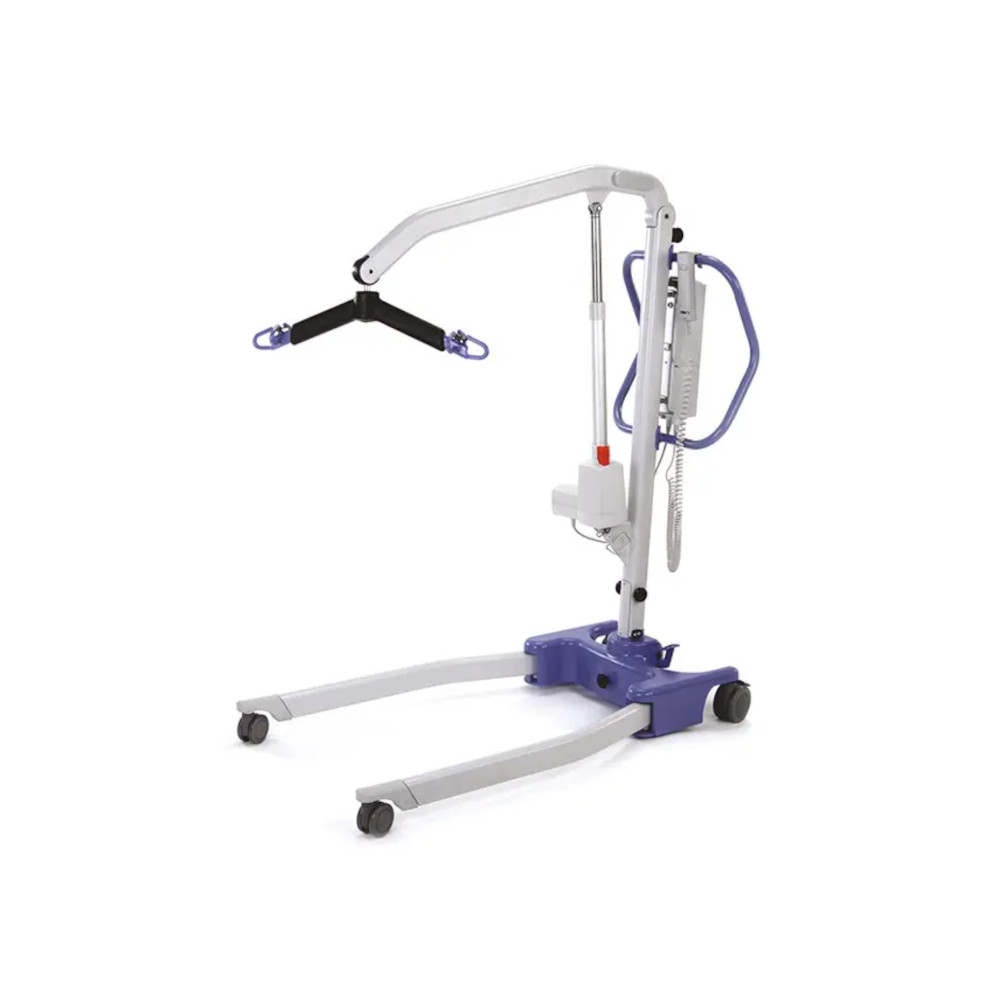

Key Features for the Oxford Advance Electric Hoist:

Versatile and Easy to Maneuver: Compact and lightweight with an ergonomic design for smooth handling in tight spaces.

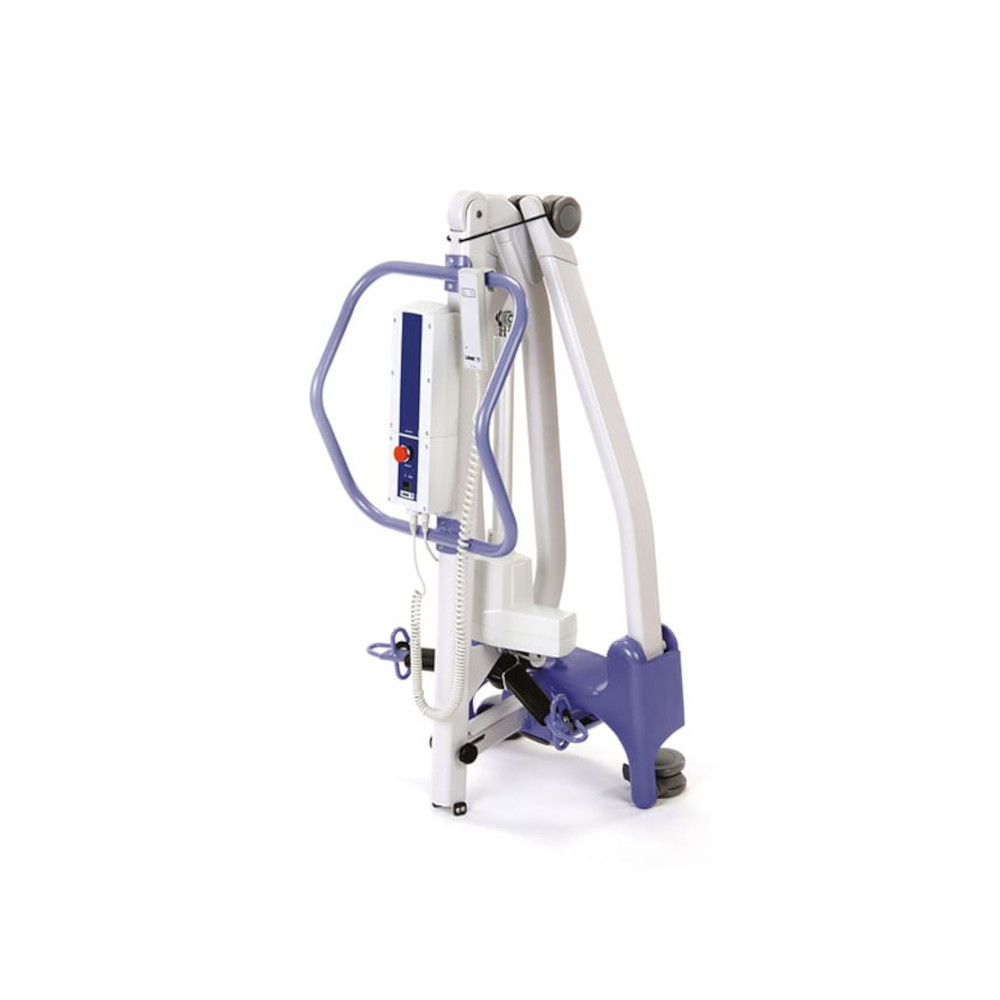

Compact Folding Design: Triangular folding frame allows for effortless transportation and storage, making it ideal for home care and clinical environments.
Swan Neck Leg Design: Angled legs enable the hoist to get close to wide furniture such as beds and wheelchairs, improving accessibility.
Smart™ Monitor Diagnostic Control Box: Integrated diagnostic and service monitoring system enhances safety and simplifies maintenance.
Multi-Position Lifting: Capable of lifting patients from floors, beds, wheelchairs, and commodes with ease.
Safety First: Built-in safety systems protect patients during lifting and transferring.
Optional 4-Point Positioning Cradle: Offers additional positioning control (disables folding function when in use).

Technical Specifications:

Safe Working Load: 155 kg (24 stone / 342 lbs)
Length: 130 cm
Maximum Overall Height: 186 cm
Minimum Overall Height: 136 cm
Spreader Bar Max Height: 169 cm
Spreader Bar Min Height: 39 cm
Spreader Bar Height at Max Reach: 117 cm
Turning Radius: 142 cm
Reach from Centre of Spreader Bar to Mast Front (Max Height): 83.5 cm
Legs Open External Width: 108 cm
Legs Open Internal Width: 100 cm
Legs Closed External Width: 67 cm
Legs Closed Internal Width: 57 cm
Overall Leg Height: 11.5 cm
Ground Clearance: 3 cm
Front Twin Castors: 7.5 cm
Rear Braked Castors: 10 cm
Maximum User Weight: 155 kg
Body Weight (Including Fixings): 28.9 kg
2-Point Spreader Bar: Yes
Battery Type: 1 x 12V rechargeable
Battery Capacity: 3.2 amp hours
